Features:

• 33 GHz bandwidth
• 4 full-bandwidth channels
• 10 bit ADC
• 128 GSa/s sample rate on all channels
• Up to 2 Gpts of memory
• Upgradable to 110 GHz
• AutoProbe II interface is compatible with your existing InfiniiMax probes
• Optional calibration module for on-site self-calibration
• High-speed SDA and Clock Recovery included
• User-Defined functions included

What's included:

• USB keyboard and mouse
• Kit of (5) 3.5 mm female to 3.5 mm female connector saver adapters
• Kit of (10) connector saver collars
• Torque wrench - 8 in-lb, 5/16 inch
• ESD mat with wrist strap and cord
• Heel ground strap

The Infiniium UXR is the first series of real-time oscilloscopes to offer ultra-high-performance acquisition with 10 bits of high-definition resolution. With up to 4 channels of simultaneous up to 110 GHz of bandwidth, each concurrently sampling at a staggering 256 GSa/s, Infiniium UXR delivers the world-leading performance, ultra-low noise and high signal fidelity necessary for engineers and scientists to truly see and understand even the fastest phenomena – enabling you to more quickly develop the next generation of technology and research.

The UXR0334A can effectively meet your toughest test-system challenges and requirements with its bandwidth upgradability. It also includes high-speed SDA and clock recovery, user-defined functions, and an optional calibration module.

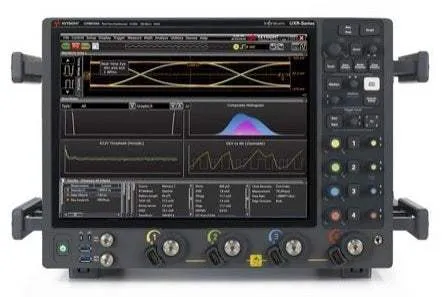

*The image is for reference only. See product specification for details.
